| Product Model
: |
AS B108(Australian Standard)
|
|
 |
AS
B108
( Australian Standard ) |
1/4 |
5/16 |
3/8 |
7/16 |
1/2 |
5/8 |
3/4 |
| £¨1£©When Bolt LengthL |
19.05+2.00 |
22.23+2.50 |
25.40+3.00 |
28.58+3.50 |
31.75+3.50 |
38.10+4.00 |
44.45+4.50 |
| £¨2£©
When Bolt Length but ¡Ü200¡Ü6" of When Bolt
LengthL |
38.10+2.50 |
38.10+2.50 |
38.10+2.50 |
38.10+2.50 |
38.10+2.50 |
38.10+2.50 |
38.10+2.50 |
| £¨3£© When Bolt Length but ¡Ü200>6"
L |
88.90+3.00 |
88.90+3.00 |
88.90+3.00 |
88.90+3.00 |
88.90+3.00 |
88.90+3.00 |
88.90+3.00 |

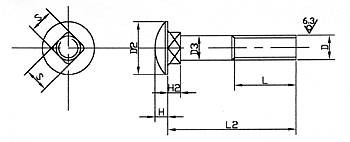

| Thread
Rolled Blank (2AGrade) D |
MAX |
5.47 |
6.94 |
8.41 |
9.84 |
11.31 |
14.25 |
17.26 |
| MIN |
5.42 |
6.89 |
8.36 |
9.79 |
11.26 |
14.20 |
17.21 |
| Normal Shank D3 |
MAX |
6.60 |
8.22 |
9.85 |
11.48 |
13.08 |
16.30 |
19.50 |
| MIN |
6.02 |
7.57 |
9.15 |
10.70 |
12.27 |
15.37 |
18.52 |
| Square
Nack Across Flats S |
MAX |
6.60 |
8.22 |
9.85 |
11.45 |
13.08 |
16.30 |
20.14 |
| MIN |
6.23 |
7.80 |
9.35 |
10.95 |
12.50 |
15.65 |
18.83 |
| Lenght
of Square Neck
H2 |
MAX |
3.96 |
4.74 |
5.56 |
6.35 |
7.13 |
8.73 |
10.31 |
| MIN |
3.18 |
3.97 |
4.78 |
5.57 |
6.35 |
7.96 |
9.53 |
| Head Diameter
D2 |
MAX |
15.00 |
18.61 |
22.17 |
25.75 |
29.33 |
36.47 |
43.63 |
| MIN |
13.51 |
17.10 |
20.66 |
24.24 |
27.82 |
34.96 |
42.12 |
| Head Height H |
MAX |
3.68 |
4.47 |
5.28 |
6.07 |
6.85 |
8.73 |
10.31 |
| MIN |
3.18 |
3.97 |
4.78 |
5.57 |
6.35 |
7.96 |
9.53 |
| When Bolt Length but ¡Ü200 Tolerance
L2 |
¡Ü1" |
1.25"-2.5" |
2.75"-4" |
4.25"-6" |
>6" |
|
|
|
| Diameter1/4 -
3/8 |
+0.50 |
+0.50 |
+1.00 |
+1.50 |
+2.50 |
|
|
|
| -0.75 |
-1.00 |
-1.50 |
-2.50 |
-4.50 |
|
|
|
| Diameter7/16 -
1/2 |
+0.50 |
+1.00 |
+1.50 |
+2.00 |
+3.00 |
|
|
|
| -0.76 |
-1.50 |
-2.00 |
-2.50 |
-4.50 |
|
|
|
| Diameter9/16 -
3/4 |
+0.50 |
+1.50 |
+2.00 |
+2.50 |
+3.50 |
|
|
|
| -0.76 |
-2.00 |
-2.50 |
-2.50 |
-4.50 |
¡¡ |
¡¡ |
¡¡ |
|
|
