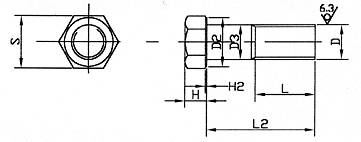

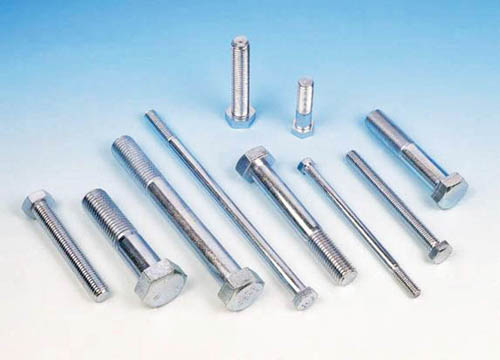

  Hex Bolts
    Product Model :  DIN933-87


DIN933-87 M5 M6 M8 M10 M12 M14 M16 M18 M20
Thread Rolled Blank (6gGrade) D MAX 4.42 5.30 7.10 8.90 10.70 12.55 14.55 16.20 18.20
MIN 4.38 5.25 7.05 8.85 10.65 12.50 14.50 16.15 18.15
hexangular subtense S MAX 8.00 10.00 13.00 16.00 18.00 21.00 24.00 27.00 30.00
MIN 7.78 9.78 12.73 15.73 17.73 20.67 23.67 26.67 29.67
 Head Height H MAX 3.65 4.15 5.45 6.58 7.68 8.98 10.18 11.72 12.72
MIN 3.35 3.85 5.15 6.22 7.32 8.62 9.82 11.28 12.28
Gasket Diameter D2
MIN 6.90 8.90 11.60 14.60 16.60 19.60 22.50 25.30 28.20
Gasket Height H2 MAX 0.50 0.50 0.60 0.60 0.60 0.60 0.60 0.80 0.80
MIN 0.15 0.15 0.15 0.15 0.15 0.15 0.20 0.20 0.20
When Bolt Length but ¡Ü200 Tolerance L2

DiameterM5 - M20

<25 25-30 35-50 55-80 85-120 130-180 >125
+0.20 +0.42 +0.50 +0.60 +0.70 +0.80 +0.92
-0.20 -0.42 -0.50 -0.60 -0.70 -0.80 -0.92

  (4.6,4.8,6.8,8.8,10.9,12.9Grade)
