 HOME > Product

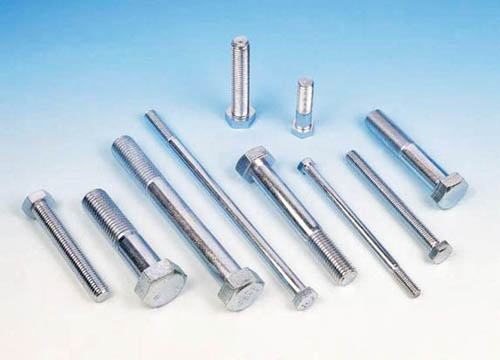

  Hex Bolts
    Product Model :  GB5782-86

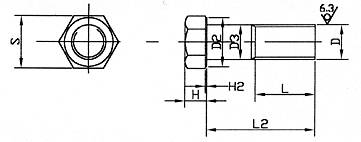

GB5782-86 M5 M6 M8 M10 M12 M14 M16 M18 M20 M24
Screw Length when Bolt Length ¡Ü125L 16+2.00 18+2.50 22+3.00 26+3.50 30+4.00 34+4.50 38+4.50 42+5.00 46+5.00 54+5.00
When Bolt Length but ¡Ü200 - L 22+2.00 24+2.50 28+3.00 32+3.50 36+4.00 40+4.50 44+4.50 48+5.00 52+5.00 60+5.00
When Bolt Length but ¡Ü200£¾200 L             45+3.50 49+4.00 53+4.50 57+4.50 61+5.00 65+5.00 73+5.00
Full thread allowed for this length. 25.00 30.00 35.00 40.00 45.00 50.00 55.00 65.00 65.00 70.00
Thread Rolled Blank (6gGrade) D MAX 4.42 5.30 7.10 8.90 10.70 12.55 14.55 16.20 18.20
MIN 4.38 5.25 7.05 8.85 10.65 12.50 14.50 16.15 18.15
Thick Rod Diameter D3 MAX 5.00 6.00 8.00 10.00 12.00 14.00 16.00 18.00 20.00 24.00
MIN 4.82 5.82 7.78 9.78 11.73 13.73 15.73 17.73 19.67 23.67
hexangular subtense S MAX 8.00 10.00 13.00 16.00 18.00 21.00 24.00 27.00 30.00 36.00
MIN 7.78 9.78 12.73 15.73 17.73 20.67 23.67 26.67 29.67 35.38
Head Diameter H MAX 3.65 4.15 5.45 6.58 7.68 8.98 10.18 11.72 12.72 15.22
MIN 3.35 3.85 5.15 6.22 7.32 8.62 9.82 11.28 12.28 14.78
Gasket Diameter D2 MIN 6.90 8.90 11.60 14.60 16.60 19.60 22.50 25.30 28.20 33.60
Gasket Height H2 MAX 0.50 0.50 0.60 0.60 0.60 0.60 0.60 0.80 0.80 0.80
MIN 0.15 0.15 0.15 0.15 0.15 0.15 0.20 0.20 0.20 0.20
When Bolt Length but ¡Ü200 Tolerance L2

DiameterM5 - M20

£¼35 35-50 55-80 90-120 >125
+0.40 +0.50 +0.60 +0.70 +0.80
-0.40 -0.50 -0.60 -0.70 -0.80

  (4.6,4.8,6.8,8.8,10.9,12.9Grade)
