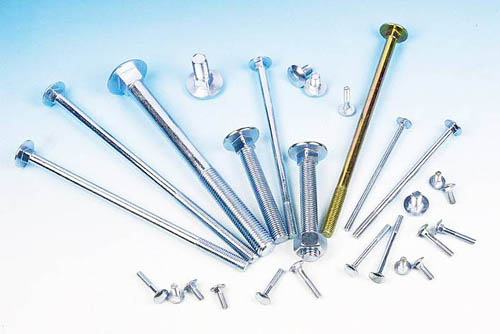

| Product Model
: |
DIN603-81
|
|
 |
| DIN603-81 |
M5 |
M6 |
M8 |
M10 |
M12 |
M16 |
M20 |
| Screw Length when Bolt Length ¡Ü125L |
16+2.00 |
18+2.50 |
22+3.00 |
26+3.50 |
30+4.00 |
38+4.50 |
46+5.00 |
| When Bolt Length but ¡Ü200
- L |
22+2.00 |
24+2.50 |
28+3.00 |
32+3.50 |
36+4.00 |
44+4.50 |
52+5.00 |
| When Bolt Length but ¡Ü200£¾200,L |
|
|
|
45+3.50 |
49+4.00 |
57+4.50 |
65+5.00 |

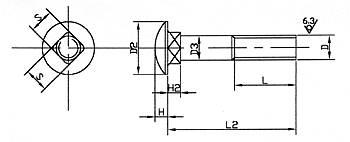

| Reduced Shank (Grade 8g) D |
MAX |
4.42 |
5.30 |
7.10 |
8.90 |
10.70 |
14.55 |
18.20 |
| MIN |
4.36 |
5.23 |
7.02 |
8.82 |
10.62 |
14.47 |
18.12 |
| Normal Shank
D3 |
MAX |
5.00 |
6.00 |
8.00 |
10.00 |
12.00 |
16.00 |
20.00 |
| MIN |
4.52 |
5.52 |
7.42 |
9.42 |
11.30 |
15.30 |
19.16 |
| Square
Nack Across Flats S |
MAX |
5.48 |
6.48 |
8.58 |
10.58 |
12.70 |
16.70 |
20.84 |
| MIN |
4.52 |
5.52 |
7.42 |
9.42 |
11.30 |
15.30 |
19.16 |
| Lenght
of Square Neck H2 |
MAX |
4.10 |
4.60 |
5.60 |
6.60 |
8.15 |
12.90 |
15.90 |
| MIN |
2.90 |
3.40 |
4.40 |
5.40 |
7.25 |
11.10 |
14.10 |
| Head Diameter
D2 |
MAX |
13.55 |
16.55 |
20.65 |
24.65 |
30.65 |
38.80 |
46.80 |
| MIN |
12.45 |
15.45 |
19.35 |
23.35 |
29.35 |
37.20 |
45.20 |
| Head Height H |
MAX |
3.50 |
3.88 |
4.88 |
5.38 |
6.95 |
8.95 |
11.05 |
| MIN |
2.70 |
3.12 |
4.12 |
4.62 |
6.05 |
8.05 |
9.95 |
| When Bolt Length but ¡Ü200 Tolerance
L2
DiameterM5 - M20
|
£¼20 |
20-30 |
35-50 |
55-80 |
90-120 |
130-150 |
160-180 |
¡Ý200 |
| +0.90 |
+1.05 |
+1.25 |
+1.50 |
+1.75 |
+2.00 |
+4.00 |
+4.60 |
| -0.90 |
-1.05 |
-1.25 |
-1.50 |
-1.75 |
-2.00 |
-4.00 |
-4.60 |
| Max Rod Length |
|
200 |
250 |
400 |
400 |
400 |
500 |
500 |
|
|
